Picking the right dehumidifier size for a warehouse or large storage area is never a one-size-fits-all task. Many facility managers make the mistake of choosing a unit based solely on square footage, only to end up with persistent dampness, mold growth, rusted inventory, or wasted energy from an overworked machine.
Unlike residential basements and small commercial rooms, warehouses have unique variables: high ceilings, constant air exchange, stored goods that absorb moisture, and fluctuating outdoor weather. To maintain stable, safe humidity levels, you need to calculate the exact pint capacity your space requires.
This guide breaks down real-world, field-tested methods to calculate dehumidifier pint size for warehouses and large storage spaces, with no complicated formulas or guesswork.
1. Understand What Dehumidifier Pint Rating Actually Means
A dehumidifier’s pint number refers to how many pints of moisture the unit can remove from the air over a 24-hour period. Higher pint ratings equal stronger moisture removal power, designed for bigger, damper spaces.
Crucially, manufacturer pint ratings are tested under standard lab conditions. Real warehouse environments—with high ceilings, poor insulation, and ongoing moisture intrusion—will always demand more capacity than the label’s baseline number. This is why sizing up slightly is always smarter than buying the exact minimum required.
2. Core Factors That Determine Dehumidifier Size for Warehouses
Before calculating capacity, account for these four key variables that impact every large storage space:
Square Footage of the Floor Plan
Square footage is the foundational measurement for sizing. Open warehouses with no dividing walls allow moisture to spread evenly, requiring consistent dehumidification across the entire footprint. Partitioned storage zones or isolated stock rooms can be sized individually for better efficiency.
Ceiling Height & Total Air Volume
Standard residential calculations use 8-foot ceilings, but most warehouses have 12-foot, 16-foot, or higher ceilings. Tall ceilings mean far more air volume to condition. A 6,000 sq. ft. warehouse with 16-foot ceilings holds nearly double the air of the same square footage with standard-height walls, so it needs a significantly higher pint capacity unit.
Baseline Humidity & Climate Conditions
Regional weather plays a massive role. Warehouses in humid coastal or subtropical regions deal with constant ambient moisture year-round. Even indoor spaces with closed doors will pull in damp air through minor gaps, loading docks, and ventilation systems.
Spaces in dry climates only need light dehumidification during rainy seasons, while facilities in high-humidity zones require full-time, high-capacity operation.
Stored Inventory Type & Moisture Sensitivity
The goods you store dictate your target humidity level and required dehumidifier power:
- Non-sensitive inventory (plastic, metal equipment, sealed goods): Tolerates 50-60% RH, needs minimal daily moisture removal
- Moderately sensitive goods (wood products, textiles, packaging materials): Requires 45-50% RH, consistent daily dehumidification
- Highly sensitive inventory (electronics, food ingredients, art supplies, archival goods): Needs strict 40-45% RH, maximum moisture removal capacity
Porous materials like cardboard, fabric, and unfinished wood absorb and release moisture continuously, forcing dehumidifiers to work harder to maintain stable levels.

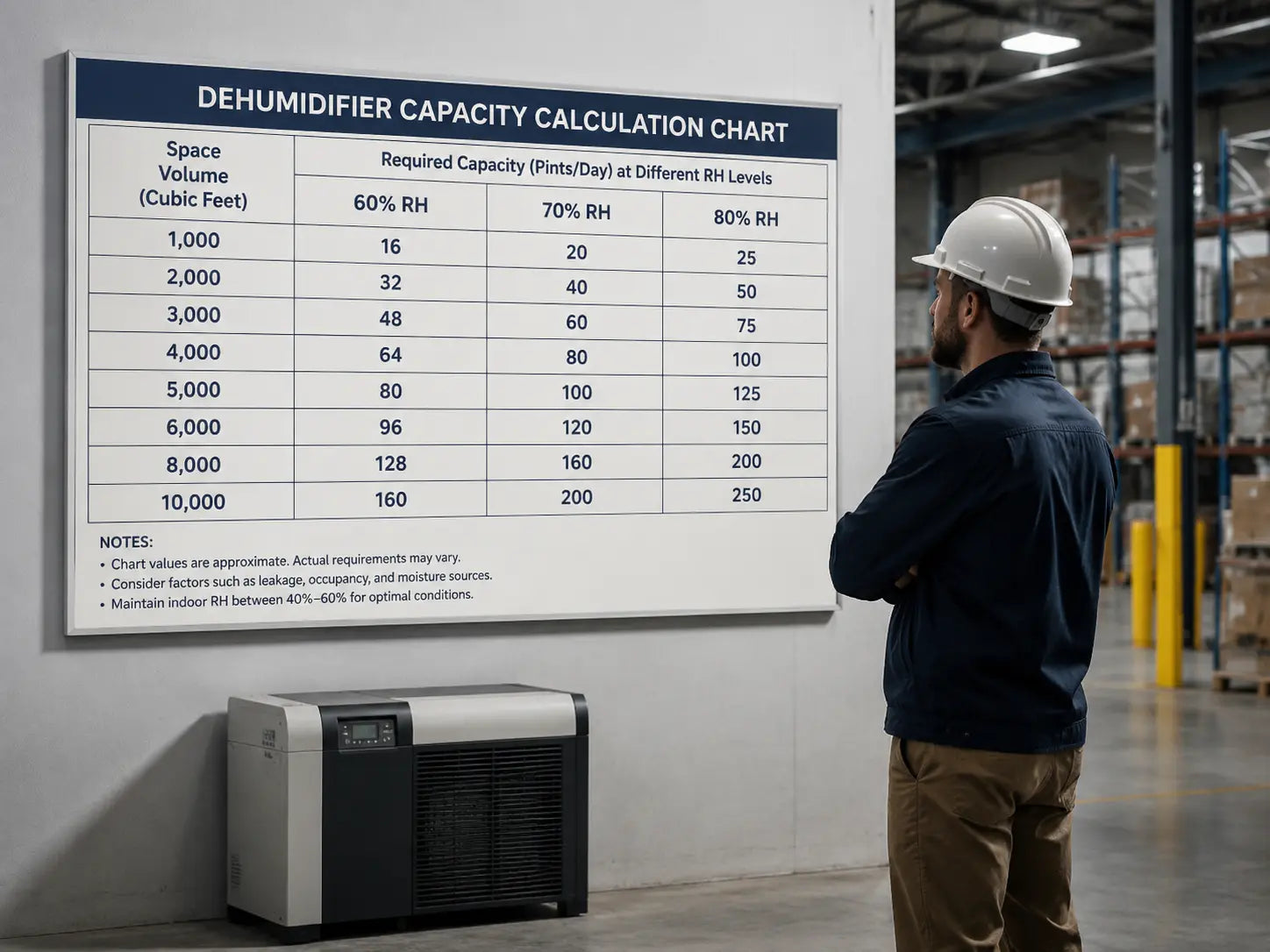

3. Simple Step-by-Step Pint Size Calculation Guide
This practical sizing method is used by facility maintenance teams and restoration professionals for large storage spaces, no advanced math required.
Step 1: Confirm Exact Square Footage
Measure the total usable floor space of your warehouse or storage zone. Ignore outdoor overhangs and non-storage areas like office front desks.
Step 2: Adjust for Ceiling Height
If your ceilings are 10 feet or higher, add 20% to your capacity requirement for every 4 feet of extra height to account for increased air volume.
Step 3: Factor in Regional Humidity
- Dry climate: Use baseline capacity
- Mildly humid climate: Add 30% capacity
- Highly humid / coastal climate: Add 50%+ capacity
Step 4: Match to Standard Dehumidifier Pint Tiers
Below are real-world applicable sizing ranges for commercial and industrial dehumidifiers, tailored for warehouse use:
- 70–80 Pint Units: Ideal for small storage rooms, isolated warehouse offices, walk-in inventory closets, and basements attached to warehouse facilities (up to 1,000 sq. ft)
- 140–160 Pint Units: Perfect for mid-sized warehouses, workshop storage zones, and mixed-use commercial spaces (2,000–6,000 sq. ft). Works well for most standard warehouse layouts with average ceiling heights
- 240–260 Pint Units: Designed for large-scale warehouses, high-ceiling storage facilities, flood restoration sites, and high-humidity industrial zones (6,000–8,500 sq. ft). Delivers continuous heavy-duty moisture removal for sensitive inventory
4. Common Warehouse Dehumidifier Sizing Mistakes to Avoid
Only Sizing By Square Footage
Ignoring ceiling height and local humidity is the top reason warehouse dehumidifiers underperform. A 5,000 sq. ft. warehouse in Florida needs far more capacity than the same-sized space in Arizona.
Under-Sizing for Porous Inventory
If you store cardboard, fabric, wood, or organic materials, these items act as moisture sponges. A baseline-sized unit will run nonstop and fail to keep humidity stable—always size up for porous stock.
Overlooking Air Exchange Frequency
Warehouses with frequent loading dock door openings, active ventilation systems, or ongoing foot and forklift traffic constantly bring in fresh damp air. These spaces require higher pint capacity than sealed, unused storage rooms.
5. Long-Term Warehouse Humidity Control Tips
Once you select the correct pint size, proper placement and operation maximize efficiency. Position dehumidifiers in central, open areas with unobstructed airflow, away from walls and stacked inventory. For extra-large warehouses, multiple properly sized units distributed across the space work better than one oversize machine, creating more consistent humidity coverage.
Always aim to maintain 40–50% relative humidity for most warehouse storage applications. This range prevents mold, rust, and material degradation without overworking your dehumidifier system.
